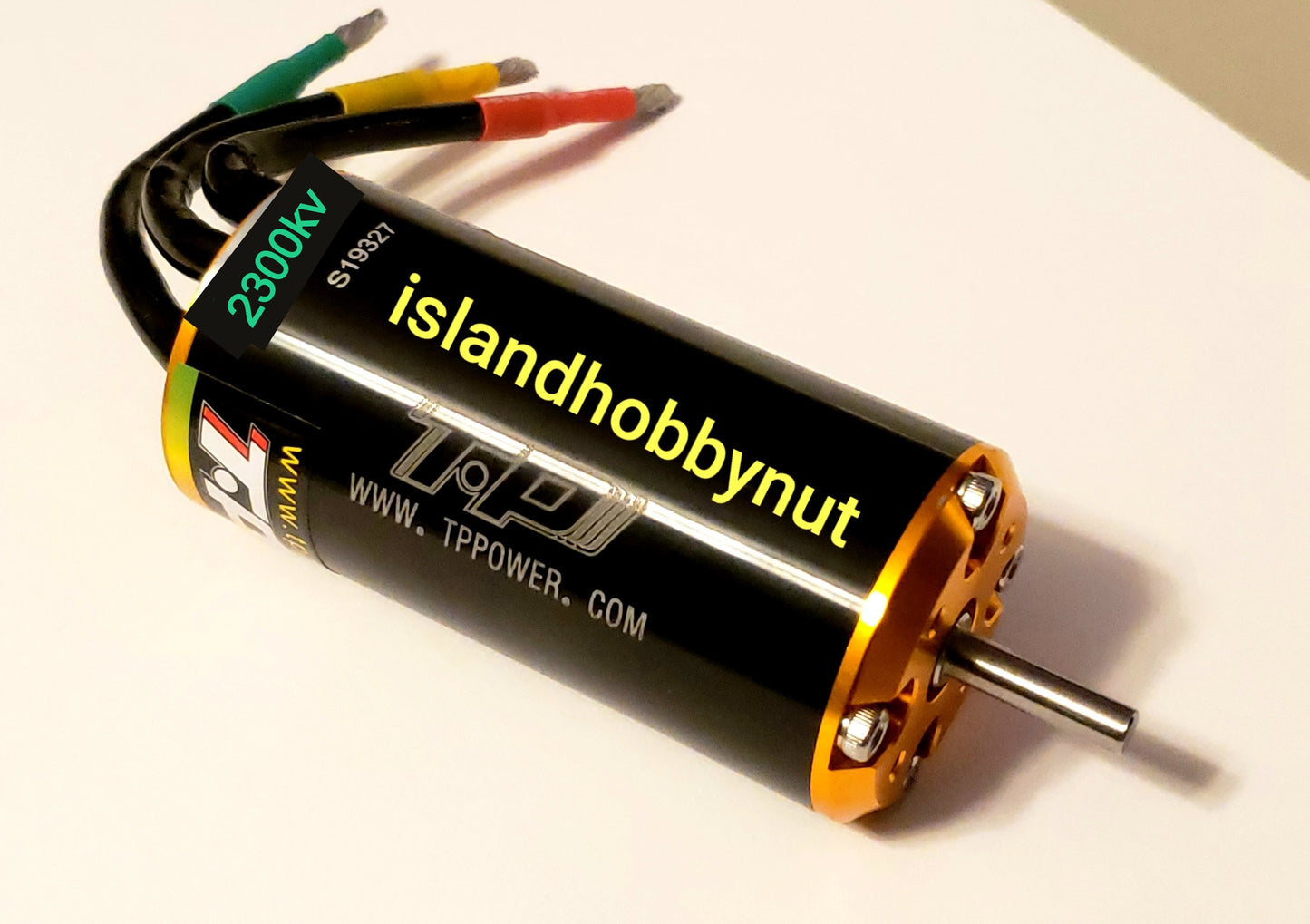

TP POWER 4050-CM 2300KV MOTOR (UP TO 8s)
TP POWER 4050-CM 2300KV MOTOR (UP TO 8s) - 5MM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
TP POWER 4050-CM 2300KV MOTOR (UP TO 8s)
Description
Description
TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4050-CM Series is a more powerful version of the regular 4050 series motor, with 80K max burst RPM.
Parameters:
Can: Smooth
Winding: 6D
KV: 2300
Max Amps (A):
Max Volt (V):
Continuous Power (W): 2500
Max Power (W): 4100 for 10 seconds
Max RPM: 80 K for 10 seconds
Internal Resistance (Ohm): 0.0042
No-load Current (A):
Shaft Diameter (mm): 5mm & 8mm in stock
Diameter X Length (mm): 40 X 82
Output Shaft Length (mm): 18
Bolt Pattern: 4 - (M3) - 25mm (bolt pattern diameter)
Weight: 475 g
Pole: 4-pole
