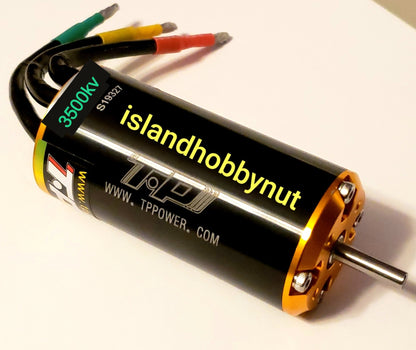

TP POWER 4050-CM 3500KV BRUSHLESS MOTOR ( UP TO 5s )

SKU: SKU: 3500kv-02

• Description

  TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4050-CM Series is a more powerful version of the regular 4050 series motor, with 80K max burst RPM.

  Parameters:

  Can: Smooth

  Winding: 2y

  KV: 3500

  Max Amps (A): 380

  Max Volt (V): 5s

  Continuous Power (W): 2500

  Max Power (W): 4100 for 10 seconds

  Max RPM: 80 K for 10 seconds

  Internal Resistance (Ohm): 0.0021

  No-load Current (A):

  Shaft Diameter (mm): 5mm or 8mm

  Diameter X Length (mm): 40 X 82

  Output Shaft Length (mm): 18

  Bolt Pattern: 4 - M4 - 25mm

  Weight: 475 g

  Pole: 4-pole

  THIS ITEM SHIPS WORLDWIDE. THANK YOU
