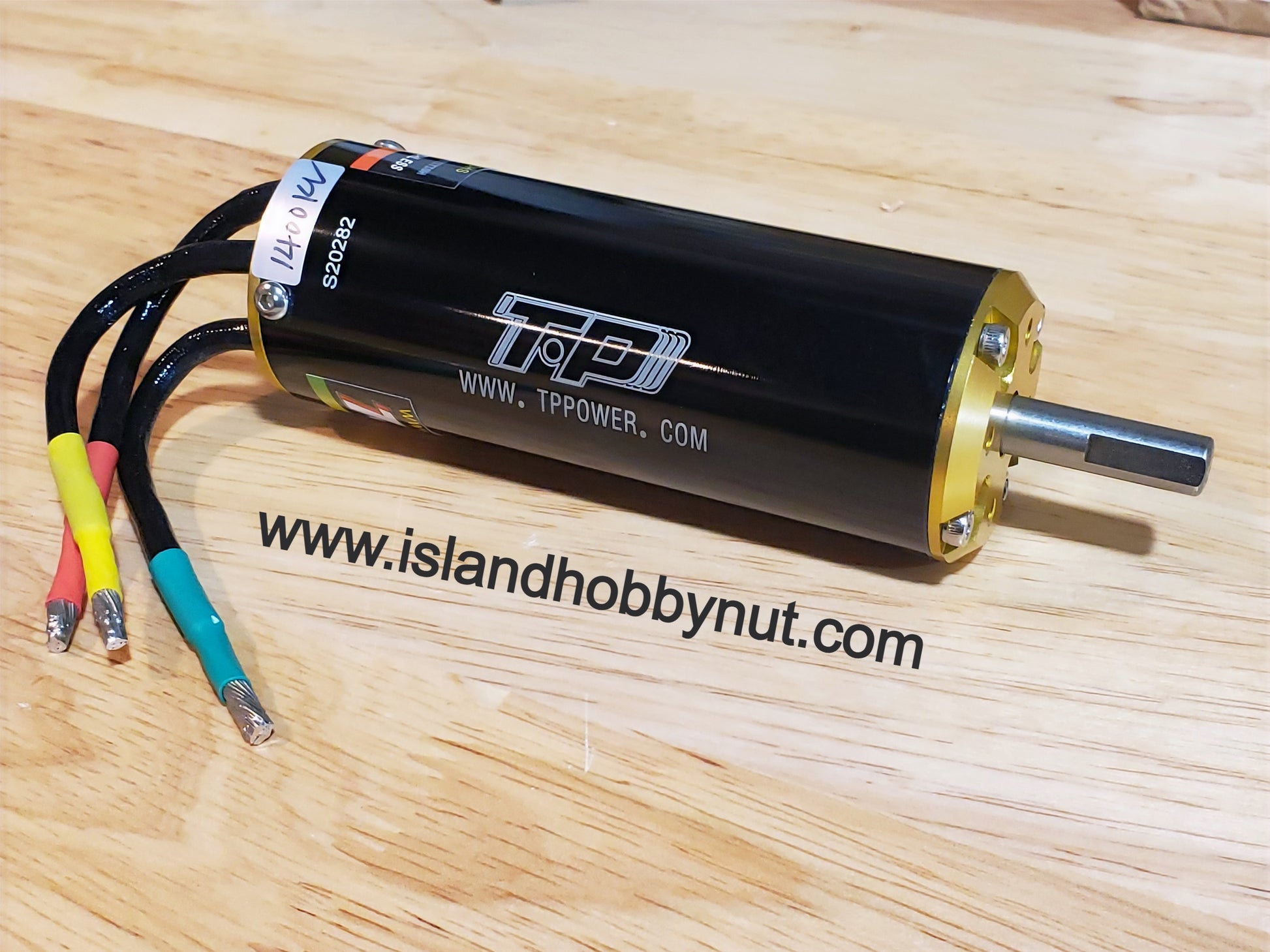

TP Power 4070-CM 1400KV (12S) Motor 5MM

TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4070-CM Series is our most powerful 40 series up to date, with 75K max burst RPM.

Parameters:

Can: Smooth

KV: 1400

Max Amps (A): 160

Max Volt (V): 54

Continuous Power (W): 5000

Max Power (W): 9000 for 10 seconds

Max RPM: 75 K for 10 seconds

Internal Resistance (Ohm): 0.0048

Shaft Diameter (mm): 5

Diameter X Length (mm): 40 X 107

Output Shaft Length (mm): 18

Bolt Pattern: 4 - M4 - 25mm

Weight: 640 g

Pole: 4-pole
