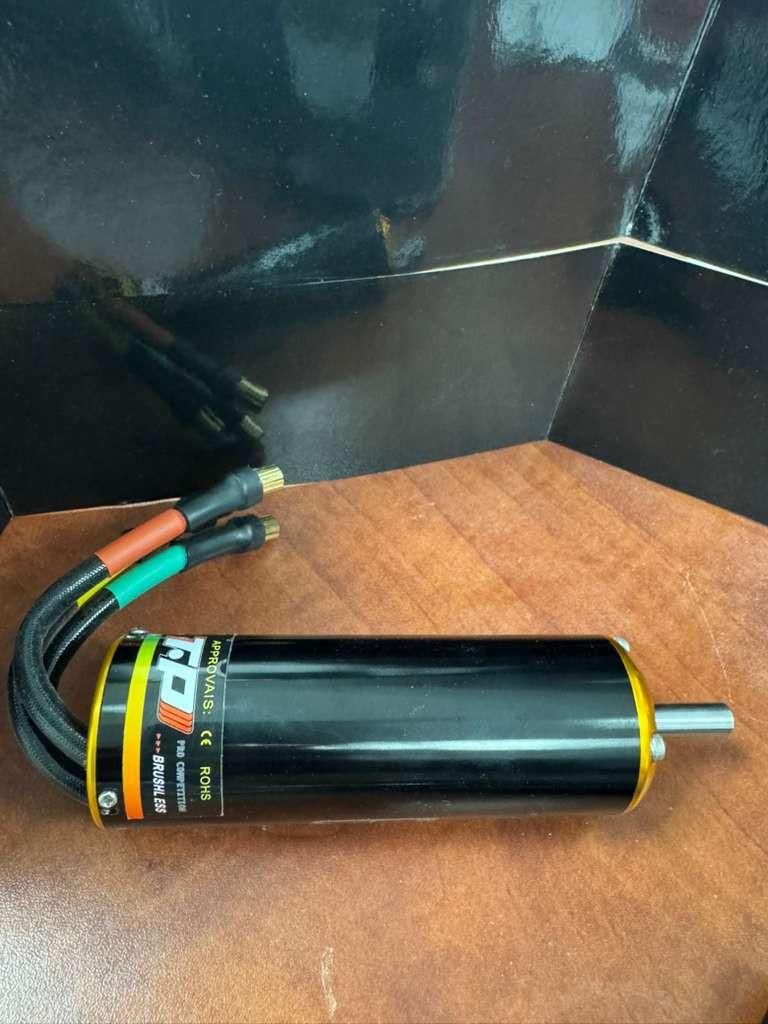

TP POWER 4080 SVM 1810 kv 10s BRUSHLESS MOTOR
TP POWER 4080 SVM 1810 kv 10s BRUSHLESS MOTOR is backordered and will ship as soon as it is back in stock.
TP POWER 4080 SVM 1810 kv 10s BRUSHLESS MOTOR
TP POWER 4080 SVM 1810 kv 10s BRUSHLESS MOTOR is backordered and will ship as soon as it is back in stock.
Description
Description
TP4080-SVM Series are the new competition 4-pole motors with more torque and power under high RPM design.
(Only SEAL end cap version is avialable for this model )
KV: 1812
Winding: D
Max Current (A): 302
Max Voltage (V): 37
Continuous Power (W): 6200
Max Power (W) - Less than 10 seconds for safety: 11200
Max RPM - Less than 10 seconds for safety: 68K
No-load current (A): 5.3
Internal Resistance (Ohm): 0.002517
Weight (g): 700
Shaft diameter: 8mm
Output Shaft Length: 24mm
Diameter x length (mm): 40 x 117
Bolt pattern: 4-M4-25 and 4-M3-25 on the same plate to offer two
