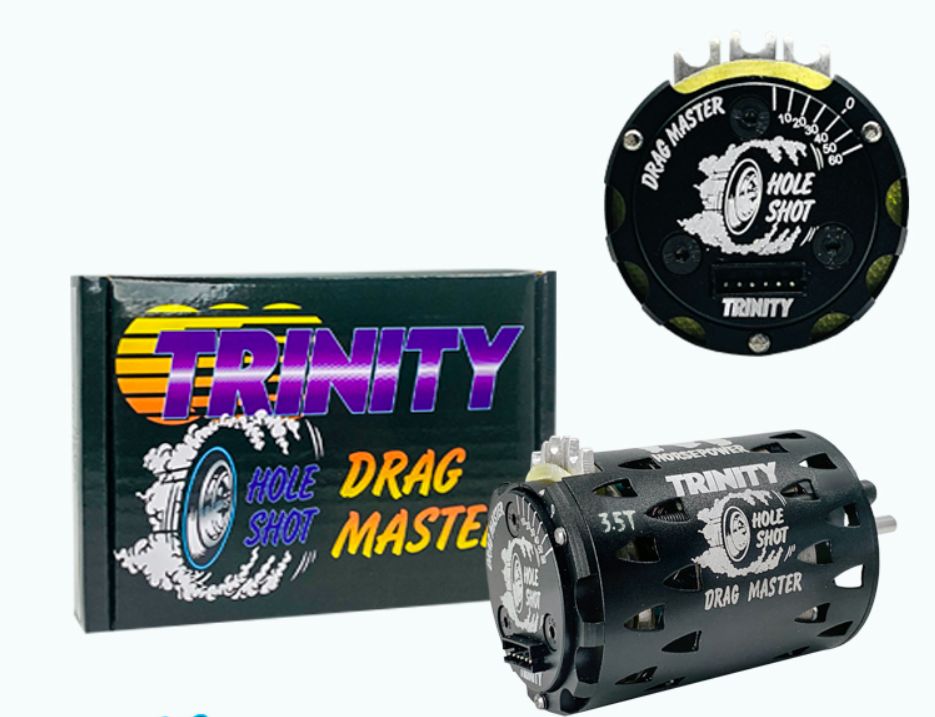

TRINITY Drag Master 3.5T Holeshot Brushless Motor

TRIDM35

Drag Master 3.5T Holeshot Brushless Motor

Designed for all out power and speed needed for Extreme - Drag Racing, Pan Cars & Touring Cars

Standard Race SPEC Features:

Aluminum based sensor board for true sensor alignment
Infinite Timing Adjustment
2mm Copper Tabs
Thicker Pure Copper Solder Tabs and Collector
Thermal Stator Coating for the best heat dissipation possible
Turbine style vented nose
More Vents for More Cooling
220C wire coating
Certified Gauge High Temperature Wire
Short Stack Stator Design
Stator Material
Grade 5 Ball Bearings
Uses all D3.5, D4 and 24K Rotors
9100Kv this number is approximate set as Zero Degrees of Timing. Sensored Brushless Motors are not rated in Kv's due to the fact that timing and voltage can effect the Kv number.

* MAX Voltage 11.1v 3 Cell Lipo Battery
