Vanquish VS4-10 Phoenix Portal 1/10 4WD RTR Rock Crawler VPS09019

The Vanquish VS4-10 Phoenix Portal RTR (VPS09019) brings classic truck styling together with serious trail performance. It arrives fully assembled with portal axles, a proven VFD Spec transmission and a complete electronics package, so all you add is a battery and charger.

Why Crawlers Love It

• F10 portal axles with machined ring and pinion gears, machined portal gears, knuckle weights and weighted alloy portal covers for extra ground clearance and a low center of gravity
• VFD Spec transmission with 6.5% overdrive, full ball bearings, metal gears and a forward/low motor position
• Chromoly universal front axle shafts deliver up to 49 degrees of steering
• Incision 80mm S8E threaded aluminum shocks with dual O-ring seals and sealed bleeder caps
• Stainless steel links, metal panhard mount and ISD10 driveshafts

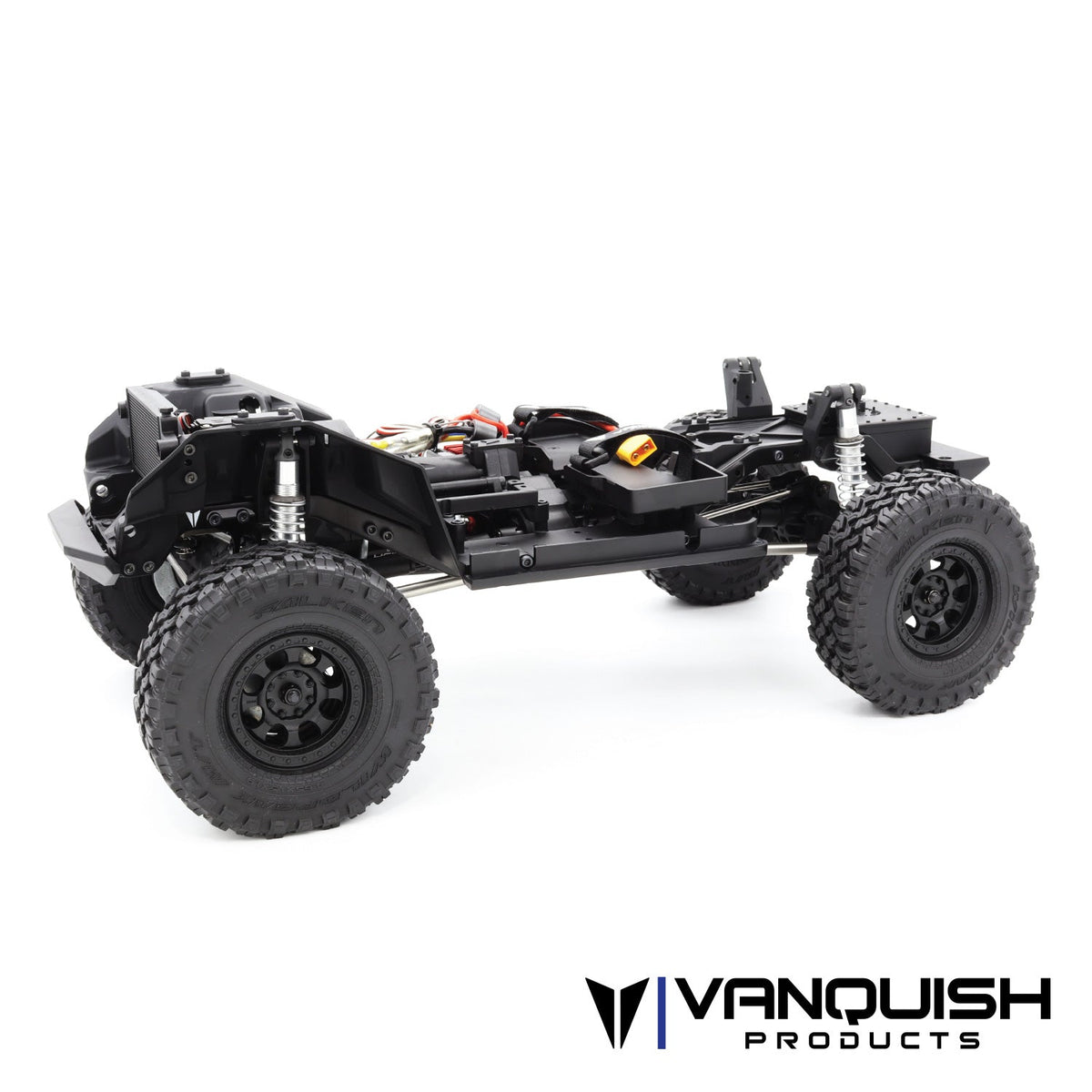

• Steel C-channel frame rails with molded cross members, dual servo mounts and winch line routing
• Phoenix 3-piece hinged body with painted bedsides, VRD1 rear cage and hidden body clips
• 1.9 Falken Wildpeak M/T white compound tires on licensed KMC KM237 Riot beadlock-style wheels

RTR Electronics Included

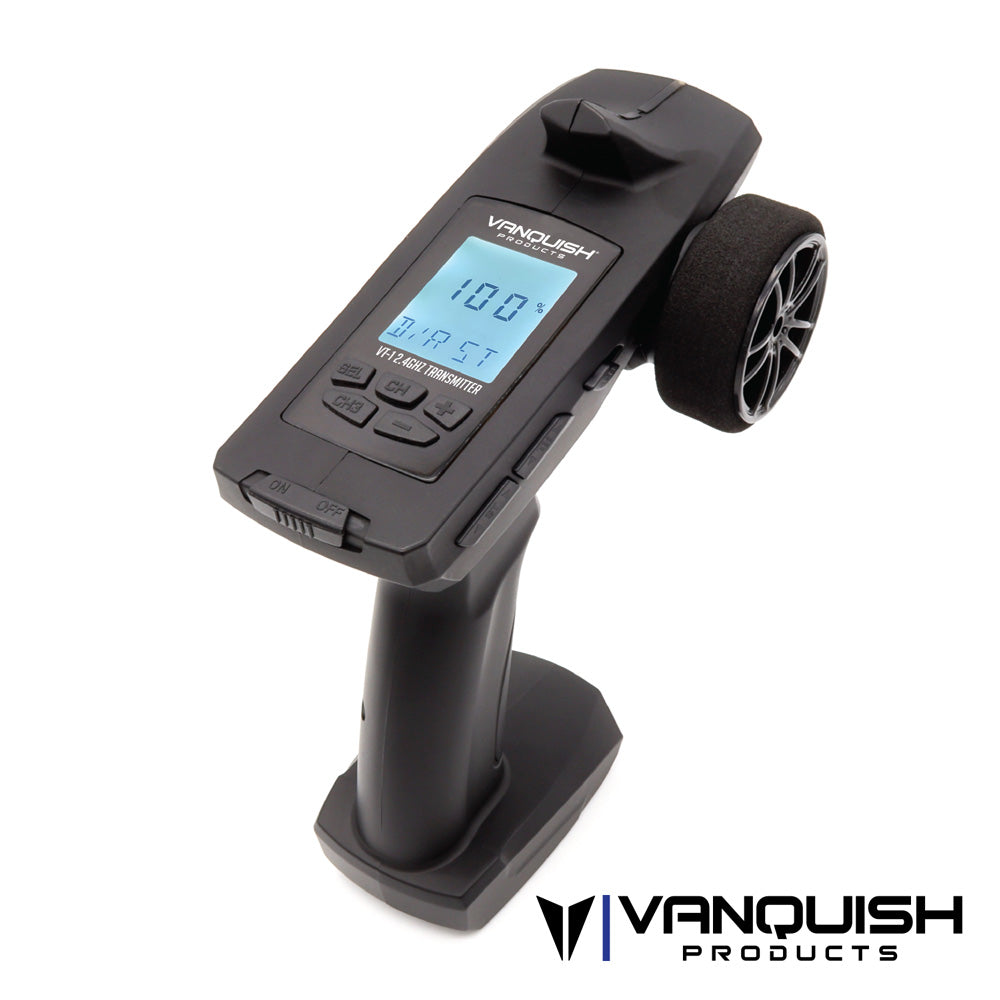

• VT-1 digital 4-channel transmitter with 15 model memory and end point/rate adjustment, ready for winch, lights or dig

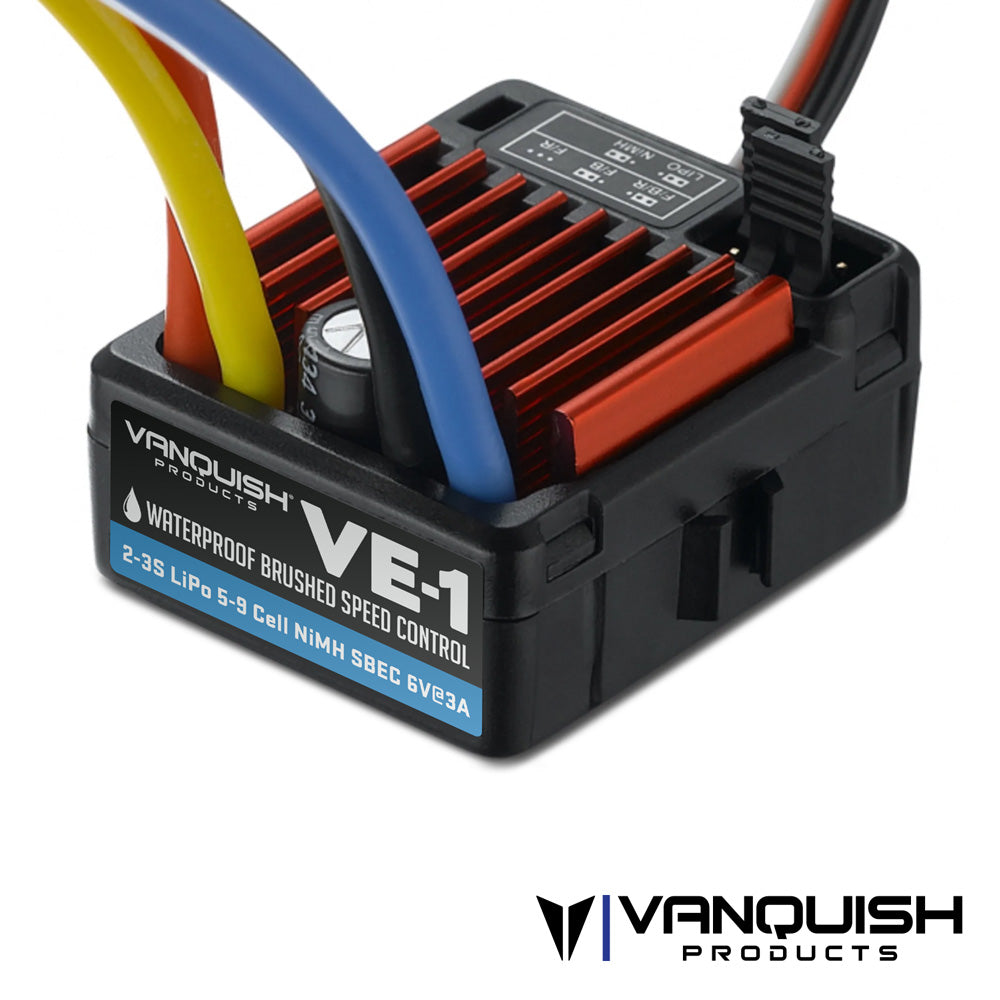

• VE-1 3S-capable ESC (Hobbywing 1060 based) with strong BEC

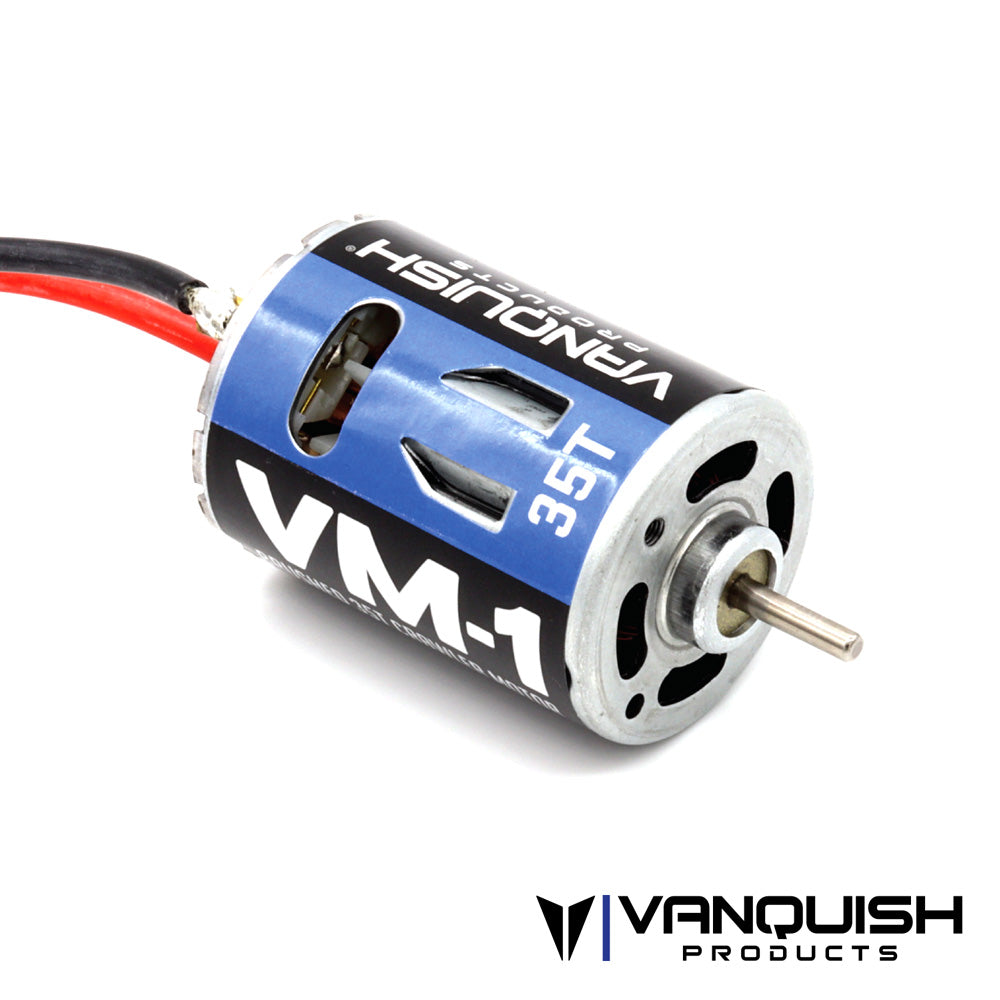

• VM-1 35T closed endbell brushed motor

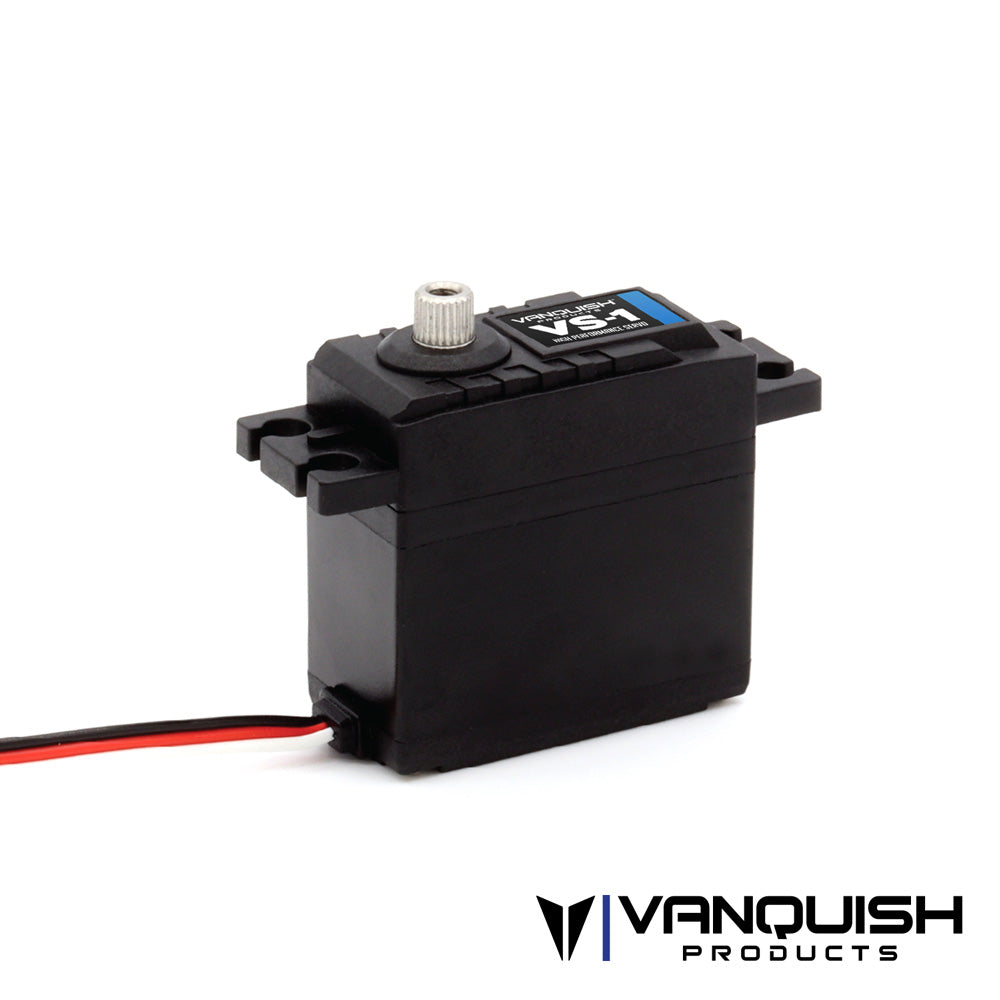

• VS-1 water-resistant metal gear servo, 200 oz-in

Specifications

• Scale: 1/10
• Wheelbase: 313mm (12.3")
• Width / Height: 250mm (9.84")
• Pinion / Spur: 15T / 52T (32P)
• Portal gear: 20T / 28T
• Overall ratio: 53.7:1 front, 57.3:1 rear
• RTR weight (no battery): approx. 6 lbs

Required to Complete

• 2S-3S LiPo or 6-cell NiMH battery with XT60 plug (max 35 x 35 x 100mm)
• Compatible battery charger
• 4 AA batteries for the transmitter
